Sine Ball Demo

Post Reply
DrChip
Posts: 167
Joined: Wed Oct 22, 2014 3:26 pm
My devices: iPhone 4 to 6+,iPad mini to iPad air 2

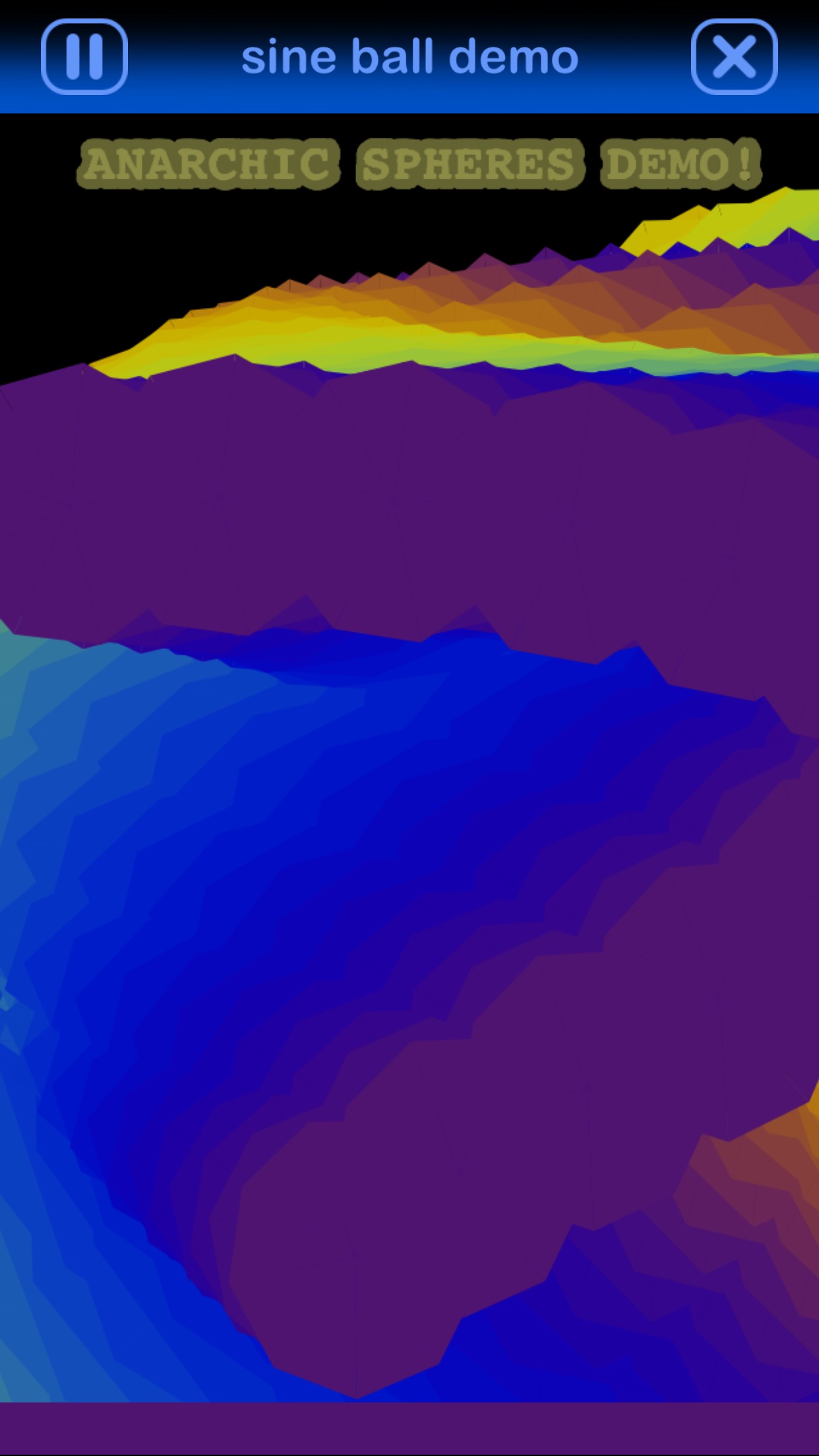

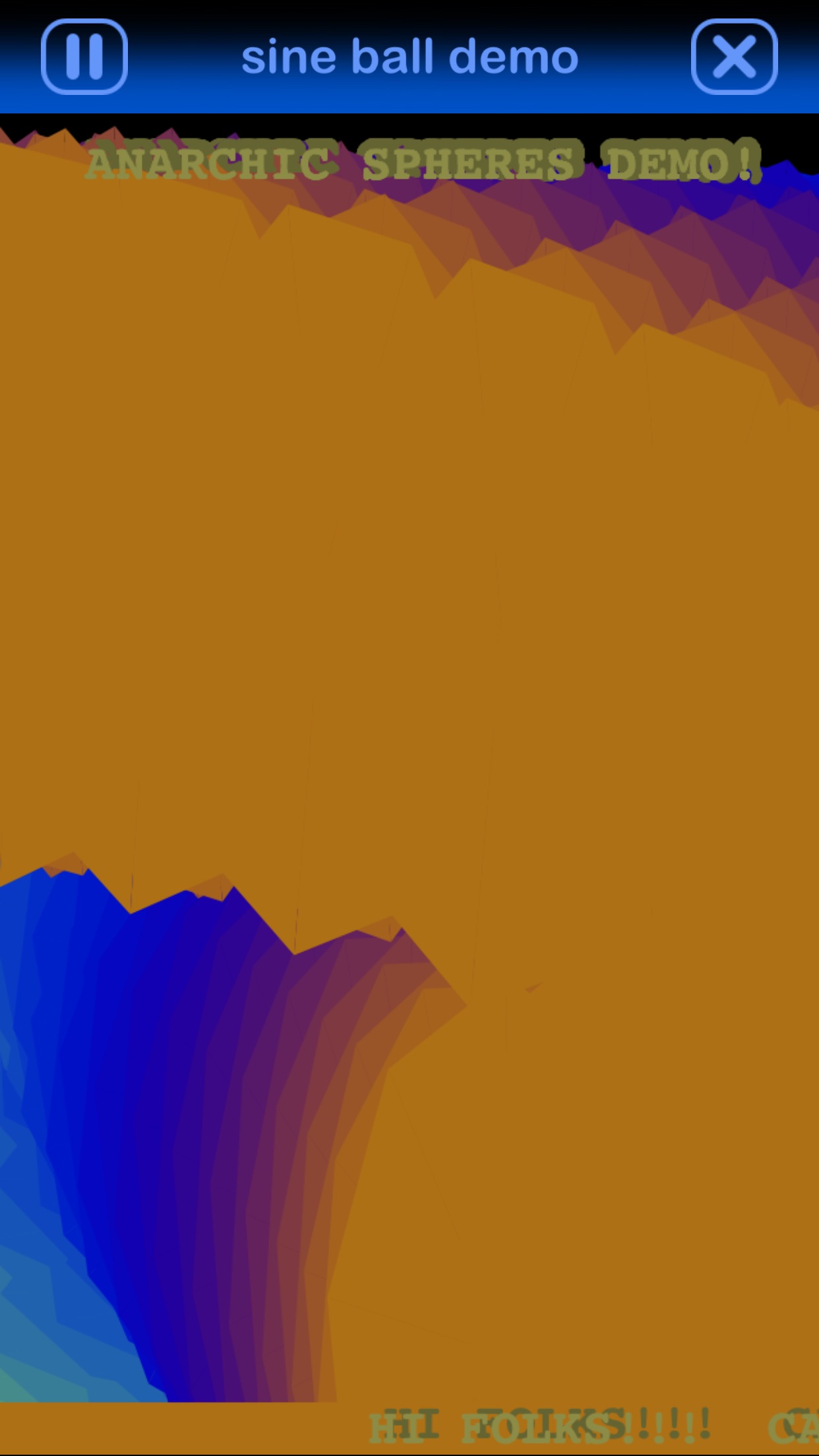

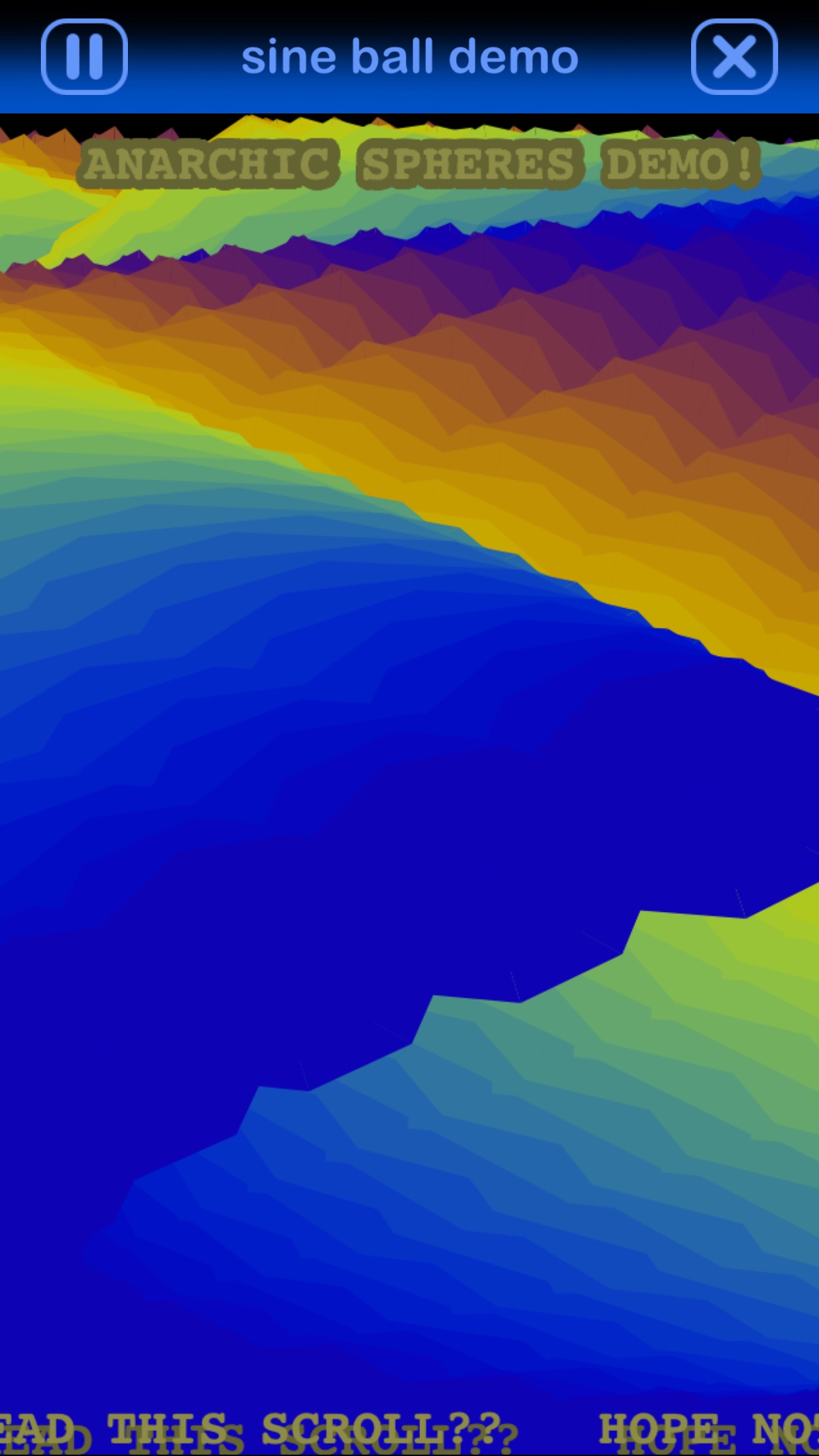

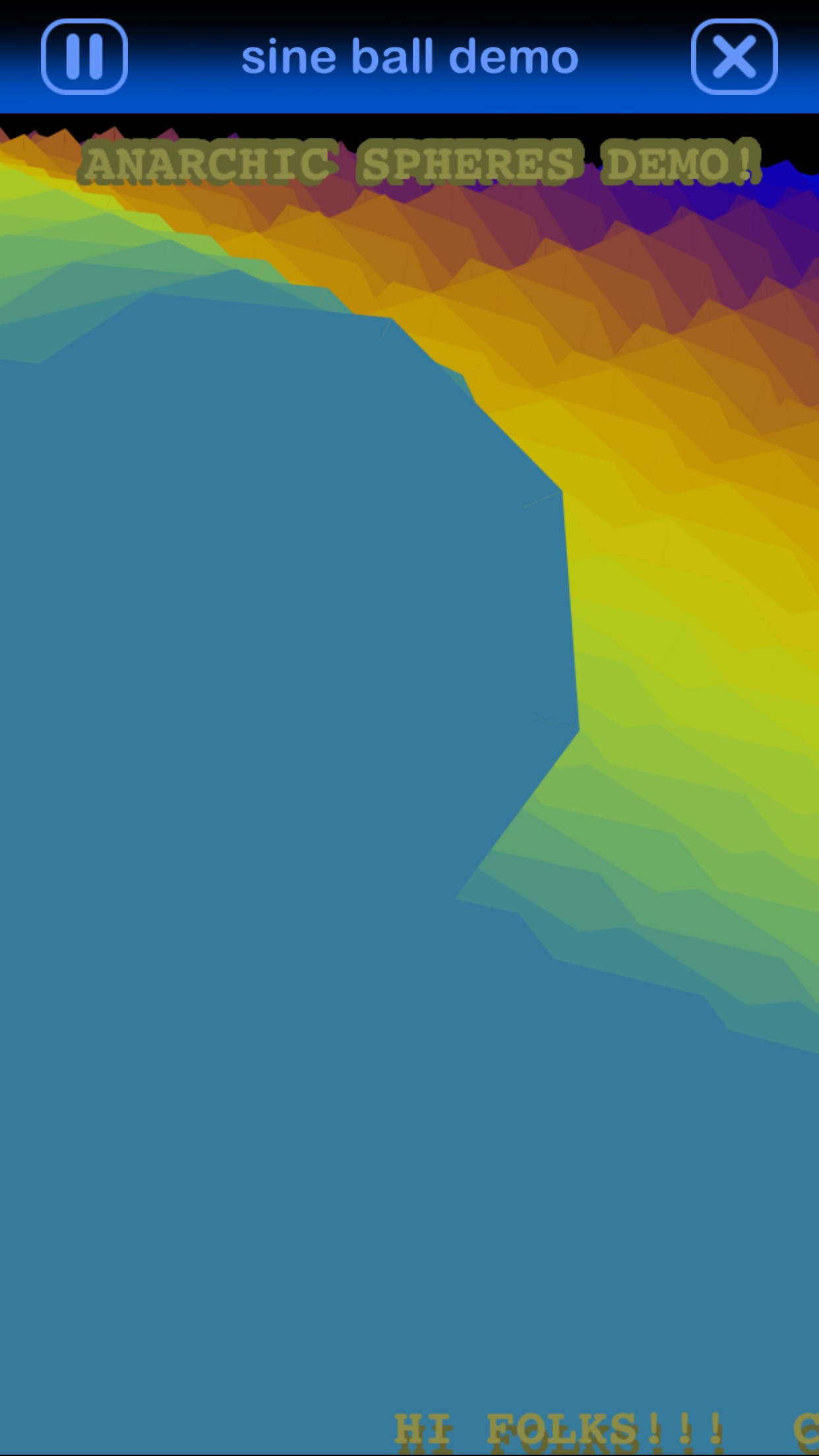

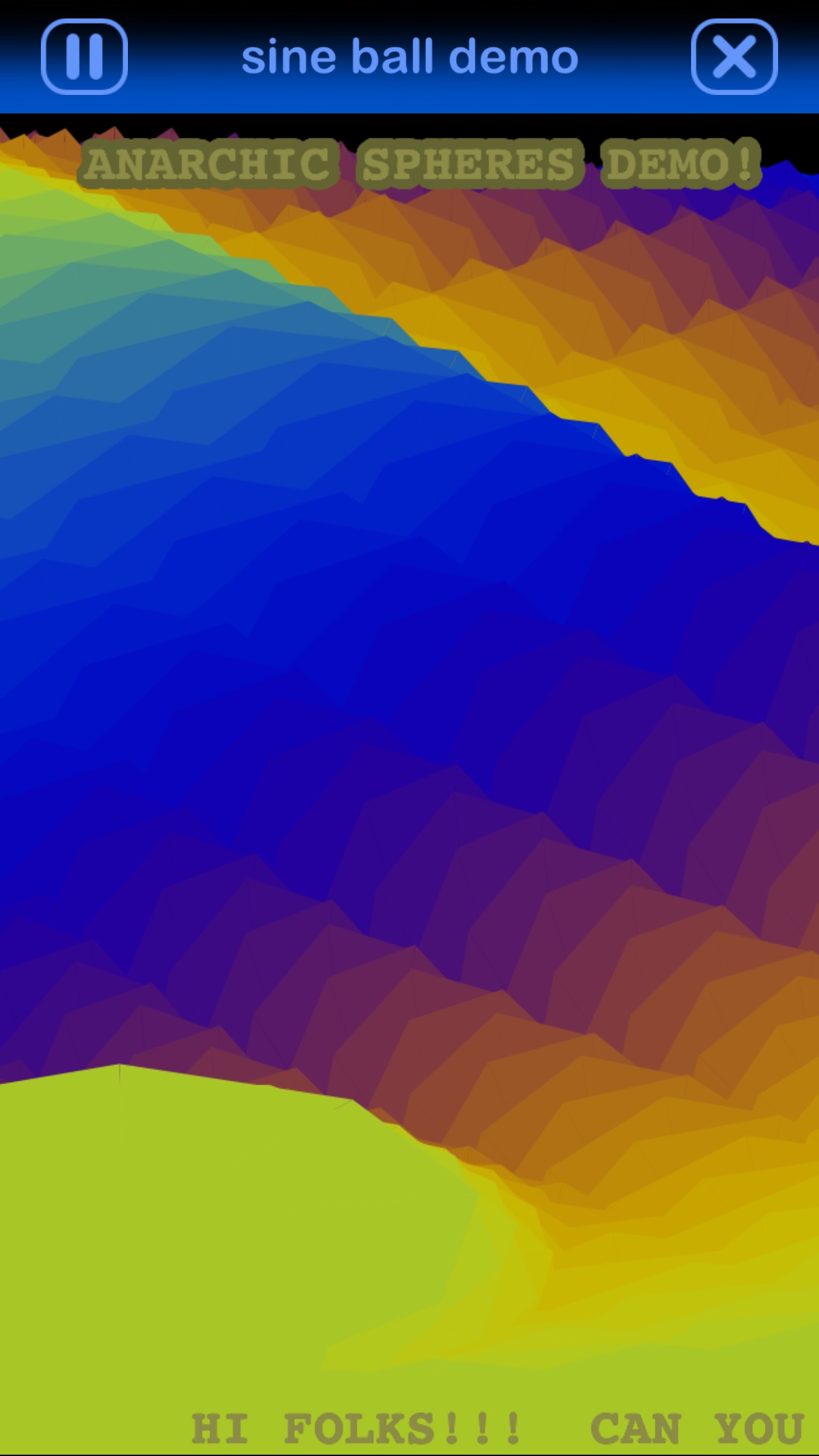

Sine Ball Demo

Post by DrChip »

Code: Select all

rem Sine ball demo.
rem iPhone 6 plus / 8.3 b4
rem Enjoy...

gosub setup

loop:
refresh off
'graphics clear
fill color 20/255,(c1/4)/255,20/255
'triangle 0,0 to sw,sh to 0,sh
trix(0)=0
triy(0)=0
trix(1)=sw
triy(1)=sh
trix(2)=0
triy(2)=sh
'fill poly trix,triy count 3
'triangle 0,0 to sw,sh to sw,0
trix(0)=0
triy(0)=0
trix(1)=sw
triy(1)=sh
trix(2)=sw
triy(2)=0
'fill poly trix,triy count 3
 gosub balls
fill rect 0,sh-20 to sw,sh
draw color 100/255,100/255,50/255
s1=2+1*sin(mm)
s2=2+1*cos(mm/3)
slx=4*sin(mm)-4
sly=4*cos(mm)
offs=50*sin(mm)
draw text mid$(s$,p,76) at scx+offs-slx,sh-18-sly
draw text "ANARCHIC SPHERES DEMO!" at 30-slx,10-sly
draw color 140/255,140/255,70/255
draw text "ANARCHIC SPHERES DEMO!" at 33,10
draw text mid$(s$,p,76) at scx+offs,sh-20
scx=scx-2
if scx<-50 then
scx=scx+10
p=p+1
if p>len(s$)-1 then p=0
end if
refresh on
goto loop


balls:
fill color c1/255,c2/255,c3/255

off=off+2
if off>360 then off=off-360
n=(bobs*10)+1
 for a=1 to bobs
mm=mm+.01
c1=100*sin(mm+a)+100
c2=100*sin(mm+a/2)+100
c3=100*sin(mm+a/3)+100

 x=px(off+m)+sw/2+xt(m+off) '195
 y=py(off+n)+sh/2 '140
 for b=l+a to 360+l+a step 40
 'triangle (sx(b)*s1)+x,(sy(b)*s2)+y to (sx(b+40)*s1)+x,(sy(b+40)*s2)+y to x,y
trix(0)=(sx(b)*s1)+x
triy(0)=(sy(b)*s2)+y
trix(1)=(sx(b+40)*s1)+x
triy(1)=(sy(b+40)*s2)+y
trix(2)=x
triy(2)=y
fill poly trix,triy count 3
 next b
 m=m+10
 n=n-10
 next a

l=l+20
if l>40 then l=l-40
m=0
return

setup:
graphics
pi=3.1415
sw=screen_width()
sh=screen_height()

bobs=14
dim sx(721)
dim sy(721)
dim px(721)
dim py(721)
dim xt(721)
dim trix(4),triy(4)

for a=1 to 720
 xt(a)=100*sin(a*(pi/180))
 sx(a)=50*sin(a*(pi/180))
 sy(a)=50*cos(a*(pi/180))
 px(a)=200*sin(a*(pi/180)*2)+sw/4
 py(a)=200*cos(a*(pi/180))+sh/6
next a
s$="                                                                      "
s$=s$&"HI FOLKS!!!  CAN YOU ACTUALLY READ THIS SCROLL?? "
s$=s$&"  HOPE NOT BECAUSE THERE IS NOTHING WORTHWHILE IN "
s$=s$&"HERE!   THIS ONE'S A BIT DIFFERENT THOUGH, EH??   "
s$=s$&"   MORE PSYCHEDELIA..   NO 3D FOR A CHANGE.. STILL"
s$=s$&" LOOKS OK THOUGH, AND OF COURSE THE SCROLL IS "
s$=s$&"DIFFERENT!!!     BIG HELLOS TO ALL THAT KNOW ME "
s$=s$&"MR. K HAS A GREAT SITE!!   THAT'S ALL FOLKS.....  "
p=0
scx=-40
return
Attachments
Last edited by DrChip on Thu Jun 04, 2015 10:27 pm, edited 1 time in total.

User avatar
Mr. Kibernetik
Site Admin
Posts: 4786
Joined: Mon Nov 19, 2012 10:16 pm
My devices: iPhone, iPad, MacBook
Location: Russia
Flag: Russia

Re: Sine Ball Demo

Post by Mr. Kibernetik »

Thank you for the comment! :D
