Ellipse, rotated about an angle

Post by Henko »

The standard sB function is not capable of drawing an ellipse under an angle.
This function does.

Code: Select all

graphics ! graphics clear
get screen size sw,sh ! cx=sw/2 ! cy=sh/2
draw color 0,0,0 ! draw size 3
for phi=0 to 360 step 15
  ellipse(cx,cy,200,80,phi) ! pause .3
  next phi
stop

' draw ellipse rotated counterclockwise with phi degrees
' xf,yf = coordinates of left focal point
' ra,rb = horizontal and vertical radii (ra > rb supposed)
' phi   = rotation angle in degrees
' option angle in calling code segment is untouched
'
def ellipse(xf,yf,ra,rb,phi)
if sin(90)=1 then oa=1 else oa=0
option angle degrees
d_alfa=1
e=sqrt(1-rb*rb/ra/ra)
rho=ra*(1-e*e)/(1-e*cos(-phi))
x=xf+rho ! y=yf
draw to x,y
for alfa=d_alfa to 360 step d_alfa
  rho=ra*(1-e*e)/(1-e*cos(alfa-phi))
  x=xf+rho*cos(alfa) ! y=yf-rho*sin(alfa)
  draw line to x,y
  next alfa
if oa=1 then option angle degrees else option angle radians
end def

matt7
Posts: 115
Joined: Sun Jul 12, 2015 5:00 pm
My devices: iPhone
Location: USA

Re: Ellipse, rotated about an angle

Post by matt7 »

I always forget about the DRAW TO and DRAW LINE TO functions! Nice use of them.

Because of the difference in screen resolutions, I did not get those thin gaps between line segments on my iPhone like in your screenshot. But if I make the DRAW SIZE larger then I do start to get some and part of the ellipse can appear transparent. But this can be avoided if you set DRAW LINECAP ROUND before calling the ellipse function.

User avatar
rbytes
Posts: 1338
Joined: Sun May 31, 2015 12:11 am
My devices: iPhone 11 Pro Max
iPad Pro 11
MacBook
Dell Inspiron laptop
CHUWI Plus 10 convertible Windows/Android tablet
Location: Calgary, Canada
Flag: Canada
Contact:

Re: Ellipse, rotated about an angle

Post by rbytes »

Another cool drawing effect. Thanks, Henk!
The only thing that gets me down is gravity...

Henko
Posts: 814
Joined: Tue Apr 09, 2013 12:23 pm
My devices: iPhone,iPad
Windows
Location: Groningen, Netherlands
Flag: Netherlands

Re: Ellipse, rotated about an angle

Post by Henko »

rbytes wrote:
Mon Mar 11, 2019 10:52 pm
Another cool drawing effect. Thanks, Henk!

Putting d_alfa=15 in the function (a very coarse ellipse) :


Henko
Posts: 814
Joined: Tue Apr 09, 2013 12:23 pm
My devices: iPhone,iPad
Windows
Location: Groningen, Netherlands
Flag: Netherlands

Re: Ellipse, rotated about an angle

Post by Henko »

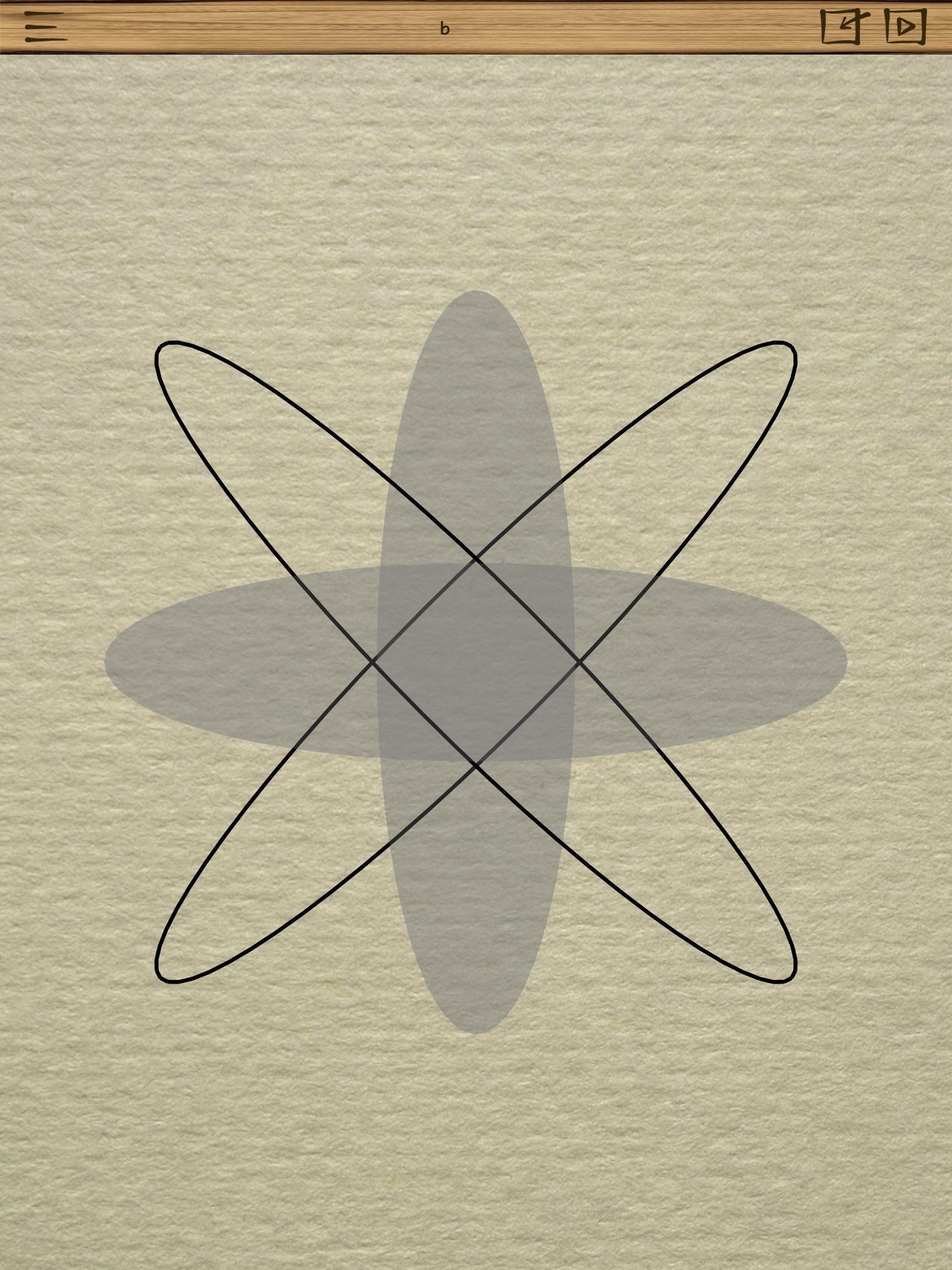

To finalize the ellipse "library", fuctions are added to draw or fill an ellips which is rotated about the centre of the ellips in stead of rotation about a focal point.

Code: Select all

graphics ! graphics clear
get screen size sw,sh ! cx=sw/2 ! cy=sh/2
draw color 0,0,0 ! draw size 3
for phi=45 to 315 step 90
  draw_ellipse(cx,cy,360,60,phi) ! pause .3
  fill_ellipse(cx,cy,300,80,phi+45,.5,.5,.5,.3)
  next phi
stop


' draw ellipse rotated counterclockwise with phi degrees
' xc,yc = coordinates of the centre of the ellipse
' ra,rb = horizontal and vertical radii (ra > rb supposed)
' phi   = rotation angle in degrees
' option angle in calling code segment is untouched
'
def draw_ellipse(xc,yc,ra,rb,phi)
if sin(90)=1 then oa=1 else oa=0
option angle degrees
dt=6 ! sp=sin(phi) ! cp=cos(phi)
draw to xc+ra*cos(phi),yc-ra*sin(phi)
for t=dt to 360 step dt
  st=sin(t) ! ct=cos(t)
  draw line to xc+ra*cp*ct-rb*sp*st,yc-ra*sp*ct-rb*cp*st
  next t
if oa=1 then option angle degrees else option angle radians
end def

' fill ellipse rotated counterclockwise with phi degrees
' xc,yc = coordinates of the centre of the ellipse
' ra,rb = horizontal and vertical radii (ra > rb supposed)
' phi   = rotation angle in degrees
' R,G,B,A = color and alpha info
' option angle in calling code segment is untouched
'
def fill_ellipse(xc,yc,ra,rb,phi,R,G,B,A)
if sin(90)=1 then oa=1 else oa=0
option angle degrees
fill color R,G,B ! fill alpha A
dt=6 ! np=int(360/dt) ! sp=sin(phi) ! cp=cos(phi)
dim x(np+2),y(np+2)
ip=0
for t=0 to 360 step dt
  ip+=1 ! st=sin(t) ! ct=cos(t)
  x(ip)= xc+ra*cp*ct-rb*sp*st ! y(ip)= yc-ra*sp*ct-rb*cp*st
  next t
fill poly x,y
if oa=1 then option angle degrees else option angle radians
end def

' draw ellipse rotated counterclockwise with phi degrees
' xf,yf = coordinates of left focal point
' ra,rb = horizontal and vertical radii (ra > rb supposed)
' phi   = rotation angle in degrees
' option angle in calling code segment is untouched
'
def ellipse(xf,yf,ra,rb,phi)
if sin(90)=1 then oa=1 else oa=0
option angle degrees
d_alfa=10
e=sqrt(1-rb*rb/ra/ra)
rho=ra*(1-e*e)/(1-e*cos(-phi))
draw to xf+rho,yf
for alfa=d_alfa to 360 step d_alfa
  rho=ra*(1-e*e)/(1-e*cos(alfa-phi))
  x=xf+rho*cos(alfa) ! y=yf-rho*sin(alfa)
  draw line to x,y
  next alfa
if oa=1 then option angle degrees else option angle radians
end def
