Blazer scrolling grid project

[DrChip]

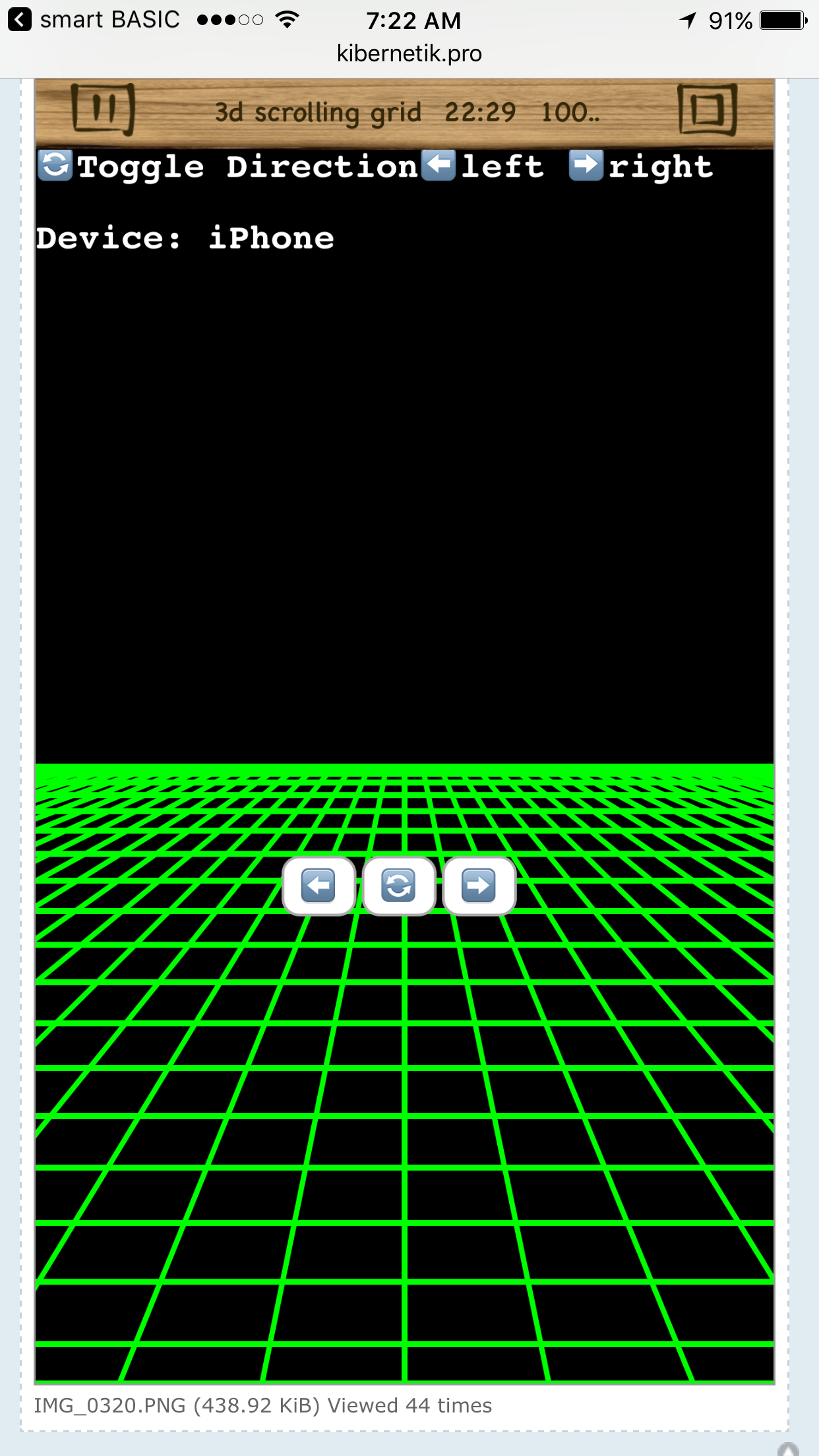

Hi! I'm working on a filled version of my 3d scrolling grid I posted earlier.

If anyone wants to jump in it would help! I don't want a split screen just one lower 3d scrolling map.

Ballblazers:
http://www.youtube.com/watch?v=MRRVJCuhREw&sns=em

Peace!

[rbytes]

I did a few experiments, but so far haven't been able to simulate the filled grid. What I think would work best is the DRAW QUAD command, because I can see that each individual grid shape is a quad. The trick is to apply the math you are using now to draw the lines, and apply it to define the corners of the quads. I know that your math skills are better than mine, so it would probably be best if you work that out.

Since very quad has to change shape with every scrolling movement, there is a lot of graphics processing to be done. I wonder if the screen can be redrawn fast enough for smooth scrolling.

I guess we will find out.

[DrChip]

Hi!

I used the quad command with an offset and locations value and draw the grid before displaying it. I can't get the speed up to make it look smooth. I'm still playing with it off and on.

[rbytes]

Some of the Forum members have some good ideas about speeding up execution. Why don't you post what you have so far and see if we can offer anything?

[DrChip]

This is one of many ideas...

Code: Select all

GRAPHICS
GRAPHICS MODE NORMAL
sw=SCREEN_WIDTH()
sh=SCREEN_HEIGHT()
DIM trix(4),triy(4)

speed = 10 'pos forward 10, neg backward -10
deltaspeed = 1 ' rate of inc...
stepp = 92 '166 ' block size
ste = stepp/2
scrollmin=80
scrollmax=80

LOOP:
speed=speed+deltaspeed
IF speed > scrollmin OR speed < -scrollmax THEN
    deltaspeed = -deltaspeed
END IF

'Draw Background
REFRESH OFF

'clear screen
GRAPHICS CLEAR 0,0,0

z=z+speed
IF z>=0 THEN
    z=z-speed
END IF

FOR h=z TO sh STEP stepp
    FOR w=0 TO sw STEP stepp
        FILL COLOR 15/255,255/255,60+(h/3)/255
        FILL RECT w,h TO w+ste,h+ste
        'FILL COLOR 0+(h/3)/255,10+(h/3)/255,0+(h/3)/255
        FILL RECT w+ste,h+ste TO w+stepp,h+stepp
    NEXT w
NEXT h
REFRESH ON
GOTO LOOP

[DrChip]

Code: Select all

REM 3D LANDSCAPE GRID IDEA

'
p=0
scx=0

lxo=sw/2 '340
lyo=1000
poll=18
DIM logx(poll*4+1)
DIM logy(poll*3+1)
FOR a=1 TO poll*3
READ logx(a),logy(a)
logx(a)=logx(a)*4
logy(a)=logy(a)*6
NEXT a


GRAPHICS
sw=SCREEN_WIDTH()
sh=SCREEN_HEIGHT()


'CREATE THE LANSCAPE GRID
point=123 '81 '****changed
DIM x(point+1)
DIM y(point+1)
DIM z(point+1)
DIM xt(point+1)
DIM yt(point+1)
xc=-20
yc=1
zc=2
FOR a=1 TO point
x(a)=xc
y(a)=sh*2 '+RND(123) ' hills pre calaculated -650
z(a)=zc
xc=xc+5
IF xc>20 THEN xc=-20 ! zc=zc+1
NEXT a


'TRANSFORM X PERSPECTIVES

FOR a=1 TO point
x(a)=x(a)*sw '120 changed width
NEXT a
mx=zc


LOOP:
REFRESH OFF
FILL COLOR 20/255,0,0
GRAPHICS CLEAR 0,0,0
FILL RECT 0,sh-100 TO sw,sh
GOSUB LANDSCAPE
xsn=40*SIN(m)
m=m+.1

DRAW COLOR 250/255,250/255,250/255
DRAW TEXT MID$(s$,p,67) AT scx+xsn,sh-20
scx=scx-2
IF scx<-10 THEN
p=p+1
IF p>LEN(s$)-1 THEN p=0
scx=scx+10
END IF
a=1
zz=2+1*SIN(m)
FILL COLOR 45/255,45/255,65/255
FOR b=1 TO 18
'FILL TRI zz*logx(a)+lxo,logy(a)+lyo , zz*logx(a+1)+lxo,logy(a+1)+lyo , zz*logx(a+2)+lxo,logy(a+2)+lyo
a=a+3
NEXT b
REFRESH ON
GOTO LOOP


LANDSCAPE:

FOR a=1 TO point 'TRANSFORM POINTS LOOP
q=z(a)+zo ' SET CONSTANT DIVISION VARIABLE
xt(a)=(x(a)/q)+sw/2 ' TRANSFORM AND OFFSET X
yt(a)=(y(a)/q)+sh/2 ' TRANSFORM Y
NEXT a ' END TRANSFORM LOOP
zo=zo-.2 ' SCROLL INTO SCREEN

''HAS ONE LINE COMPLETELY SCROLLED IN?

IF zo<-2 THEN '2
zo=.2 ' RESET Z OFFSET
FOR b=1 TO 72 ' SHIFT ALL ROWS FORWARD BY ONE LINE
y(b)=y(b+9)
NEXT b

FOR a=73 TO 123 '81 ' GENERATE NEW WAVE FOR BACK ROW
y(a)=650+l*SIN(mm+a)
NEXT a
l=140*SIN(mm*2) ' SET SINE SIZE 340
mm=mm+4 ' SHIFTING VALUE FOR SINE
END IF


'DRAW HILLS

xw=71 ' START POINT
FOR a=1 TO 64
c=(z(a)*10)-20 ' COLOR ACCORDING TO DEPTH
FILL COLOR 0,0,c/255 ' DRAW THE BLUE ONE FIRST
FILL TRI xt(xw),yt(xw) , xt(xw+1),yt(xw+1) , xt(xw+9),yt(xw+9)
FILL COLOR c/255,0,0 ' NOW DO THE RED ONE
FILL TRI xt(xw+1),yt(xw+1) , xt(xw+10),yt(xw+10) , xt(xw+9),yt(xw+9)
xw=xw-1 ' JUMP TO NEXT POLYGON PAIR 1
IF xw%9=0 THEN xw=xw-1 ' ARE WE AT EDGE? IF YES, JUMP
NEXT a
FILL COLOR 1,55/255,55/255
RETURN

DATA -39,-9,-25,-15,-24,-8
DATA -31,-15,-35,15,-28,15
DATA -38,0,-27,-4,-26,5
DATA -25,15,-20,-15,-21,18
DATA -21,-15,-15,15,-18,15
DATA -25,3,-18,-4,-16,4
DATA -15,14,-13,-14,-13,17
DATA -16,-14,-9,15,-5,18
DATA -11,-7,-8,-10,-6,19
DATA -3,-12,-5,15,-3,18
DATA -6,-13,5,15,2,16
DATA -6,3,-5,-2,4,4
DATA -2,-10,0,-6,15,-12
DATA 6,17,10,15,3,-13
DATA 12,15,20,15,15,-4
DATA 15,-4,17,-7,10,-8
DATA 15,-11,35,15,27,13
DATA 35,-15,29,-13,21,19
'19

[DrChip]

Code: Select all

REM Poly Grid test without spread

init:
sw=SCREEN_WIDTH()
sh=SCREEN_HEIGHT()
ox=sw/3 ' x location of keys
oy=sh/2 ' y locstion of keys
offt=30
offb=20
GRAPHICS
'GOSUB drawpad ' control panel
DIM X1(40),Y1(24),X2(80),Y2(24),X3(80),Y3(24),X4(80),Y4(24)
xx=50
yy=10

LOOP:

'GOSUB controls
i=0
x1(i)=sw/2-offt  'top left
y1(i)=sh/2-offt
x2(i)=sw/2+offt 'top right
y2(i)=sh/2-offt
x4(i)=sw/2-offb 'botom right
y4(i)=sh/2+offb
x3(i)=sw/2+offb 'bottom left
y3(i)=sh/2+offb
i=1
x1(i)=sw/2-offb 'top left
y1(i)=sh/2-offb
x2(i)=sw/2+offb 'top right
y2(i)=sh/2-offb
x4(i)=sw/2-offt 'botom right
y4(i)=sh/2+offt
x3(i)=sw/2+offt 'bottom left
y3(i)=sh/2+offt

REFRESH OFF
i=0
FOR xx = -sw TO sw STEP 100
     FOR yy = -sh TO sh STEP 50
      IF i = 0 THEN
          i=1
         FILL COLOR 1,0,0
         FILL QUAD X1(i)+xx+50,Y1(i)-yy-45,X2(i)+xx+50,Y2(i)-yy-45,X3(i)+xx+50,Y3(i)-yy-45,X4(i)+xx+50,Y4(i)-yy-45
     ELSE
         i=0
         FILL COLOR 1,1,1
         FILL QUAD X1(i)+xx,Y1(i)+yy,X2(i)+xx,Y2(i)+yy,X3(i)+xx,Y3(i)+yy,X4(i)+xx,Y4(i)+yy
      END IF
     NEXT yy
NEXT xx
REFRESH ON
'GOTO LOOP
END

[Operator]

I found this, hope it helps

Code: Select all

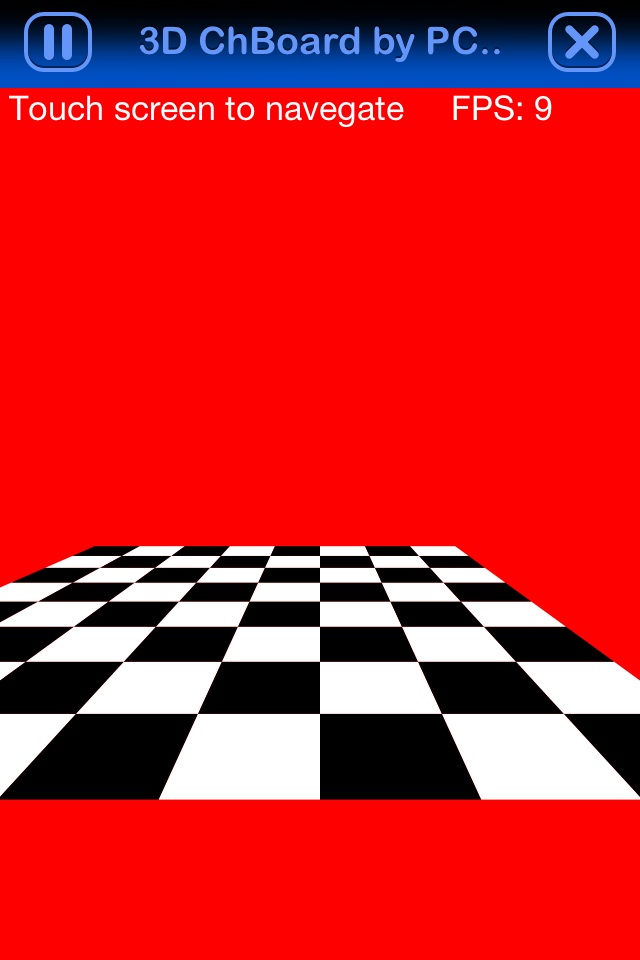

REM 3D Checkerboard:
REM ported out of Source: https://www.khanacademy.org/computer-programming/3d-checkerboard/972365924
REM sB 5.6 / iOS 6.1 / iPhone 4
REM by Operator


GRAPHICS
GRAPHICS CLEAR 1,0,0

scr_w = SCREEN_WIDTH()
scr_h = SCREEN_HEIGHT()
scr_w2 = scr_w/2
scr_h2 = scr_h/2

walkSpeed = 10
perspect = 250
horizon = 180
tileWidth = 100

meX = 400
meY = 40

FIELD "info" TEXT "" AT 0,0 SIZE 320,20 RO
FIELD "info" FONT COLOR 1,1,1
FIELD "info" BACK ALPHA 0

REFRESH OFF
TIME RESET

LOOP:
GRAPHICS CLEAR 1,0,0
loop_count += 1

'drawGrid
FOR x = 0 TO 700 STEP tileWidth
  FOR y = 0 TO 700 STEP tileWidth
    IF y - meY > -tileWidth - 100 THEN
      IF ((x/tileWidth + y/tileWidth)%2) THEN
        FILL COLOR 0,0,0
      ELSE
        FILL COLOR 1,1,1
      END IF
      p1 = perspect/(perspect + y - meY)
      x1 = scr_w2 + p1*(x - meX)
      y1 = horizon + p1*scr_h2
      p2 = perspect/(perspect + y - meY + tileWidth)
      x2 = scr_w2 + p2*(x - meX)
      y2 = horizon + p2*scr_h2

      FILL QUAD x1,y1, x1+tileWidth*p1,y1, x2+tileWidth*p2, y2, x2,y2
    END IF
  NEXT y
NEXT x

GET TOUCH 0 AS tx,ty
IF tx > 0 THEN
  IF tx > scr_w2 THEN meX += walkSpeed
  IF tx < scr_w2 THEN meX -= walkSpeed
  IF ty > scr_h2 THEN meY -= walkSpeed
  IF ty < scr_h2 THEN meY += walkSpeed
END IF

fps = INT(loop_count/TIME())
FIELD "info" TEXT " Touch screen to navegate     "&"FPS: "&fps

REFRESH
GOTO LOOP

[DrChip]

Very nice and tidy!!!! Good job! Thanks!!

[rbytes]

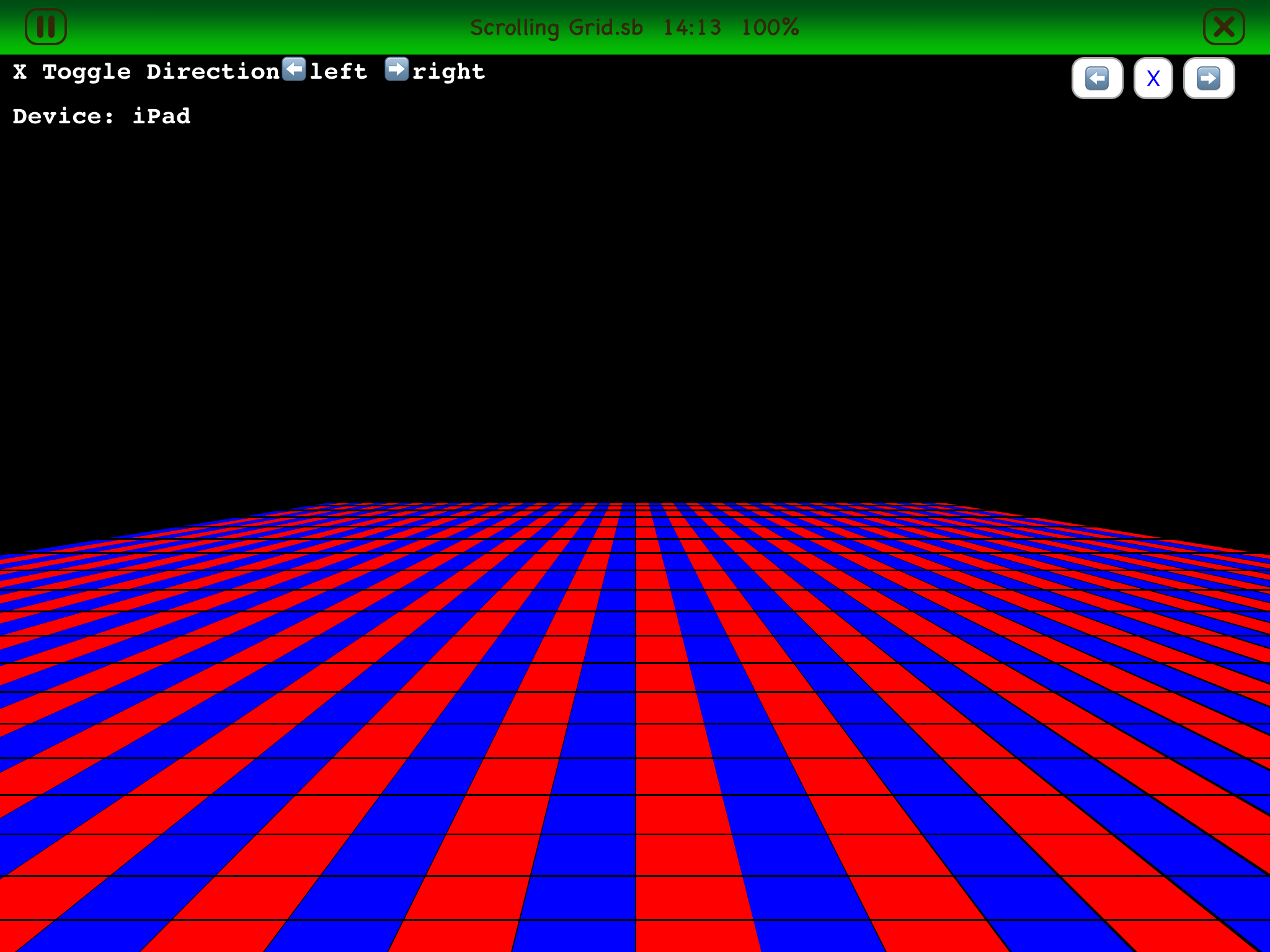

Thanks, Operator. It looks good. I will check it out. Currently I have Dr Chip's code modified to produce what you see in the image. These are quads that are at least angled correctly, but each quad stretches the full height of the grid. The horizontal black lines are just drawn lines, not dividers between quads. Now I need to use the horizontal line calculations to subdivide the quads into vertical stacks of quads, and checkerboard the colors. I will likely end up with something quite similar to the code in the checkerboard sample you posted.

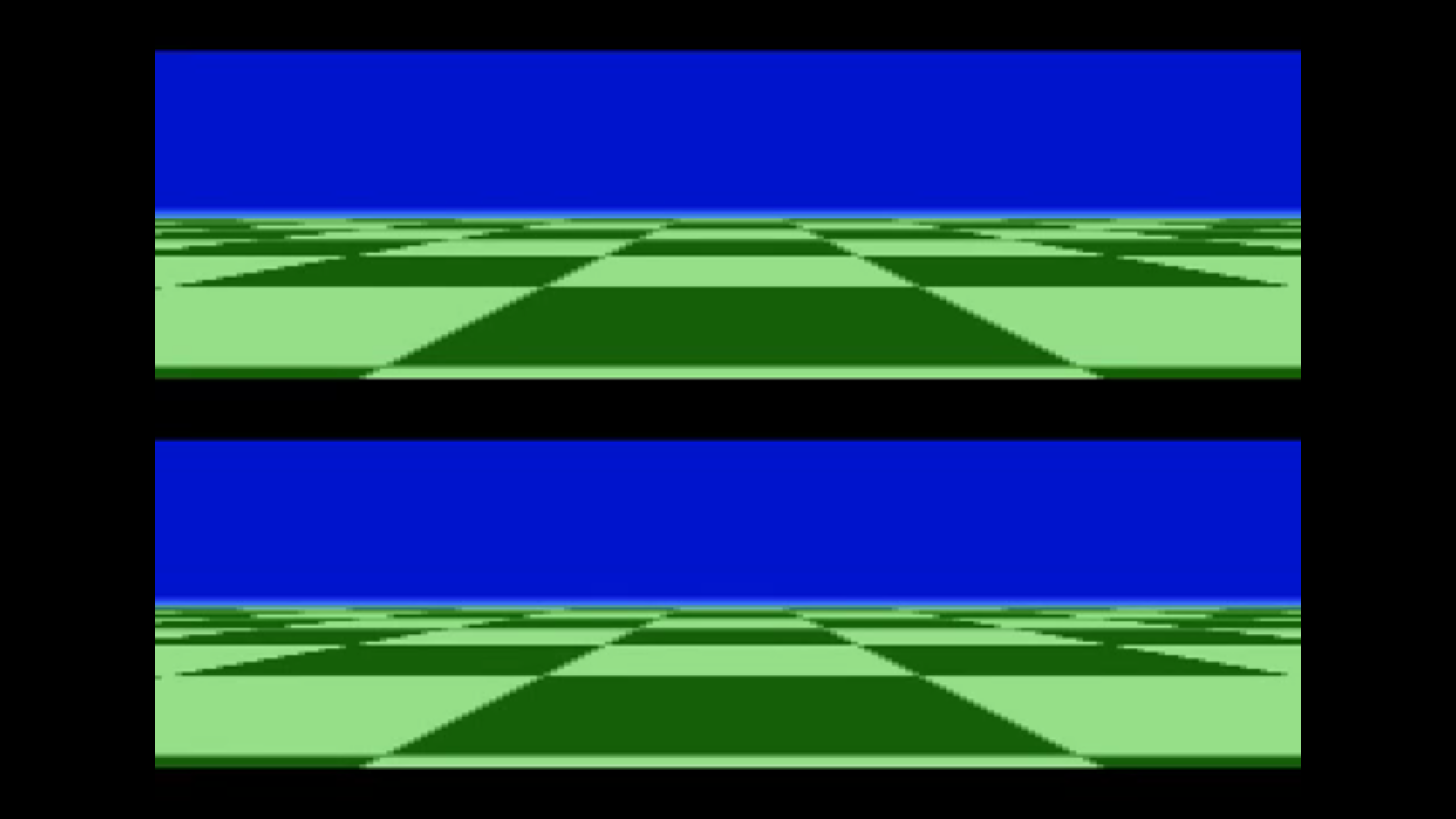

That will be a lot of quads to draw per second, and the animation may slow down too much. But it seems from Dr Chip's original sample photo that the quads could be a lot larger, and that will speed the animation up again.
